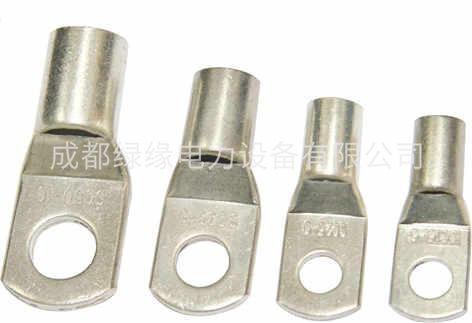

窺口鼻子
產品介紹
窺口鼻子主要適用范圍:廣泛應用于機床、紡機、電機、鐵路、船舶、電控、儀表、計算機和家電等行業(yè)中。
家用電器,電氣業(yè)，機械設備廠，船廠，配電柜配電箱等
產品外觀規(guī)格良好，導電性能好,安全.
產品用途 ： 適用于標稱截面1.5-300平方，電氣電纜式電線的銅導體與電氣設備的連接.
產品特點: 長期工作溫度-55℃-150℃，表面鍍錫。
表一
| 型號 | 螺栓口直徑d2（mm） | 尺寸（mm） | 導線截面 | |||
| dφ | Dφ | L1 | L | |||
| SC 1.5-5 | 5.2 | 1.8 | 3.7 | 5.0 | 16.0 | 1.5 |
| SC 2.5-4 | 4.2 | 2.4 | 4.0 | 7.0 | 18.0 | 2.5 |
| SC 2.5-5 | 5.2 | 2.4 | 4.0 | 7.0 | 20.0 | 2.5 |
| SC 4-5 | 5.2 | 3.1 | 4.8 | 7.0 | 20.0 | 4 |
| SC 4-6 | 6.5 | 3.1 | 4.8 | 7.0 | 20.0 | 4 |
| SC 6-5 | 5.2 | 3.8 | 5.5 | 9.0 | 24.0 | 6 |
| SC 6-6 | 6.5 | 3.8 | 5.5 | 9.0 | 24.0 | 6 |
| SC6-8 | - | - | - | - | - | - |
| SC 10-6 | 6.5 | 5 | 6.5 | 9.0 | 26.0 | 10 |
| SC 10-8 | 8.4 | 5 | 6.5 | 9.0 | 26.0 | 10 |
| SC 16-6 | 6.5 | 5.7 | 7.5 | 11.0 | 30.0 | 16 |
| SC 16-8 | 8.4 | 5.7 | 7.5 | 11.0 | 30.0 | 16 |
| SC16-10 | - | - | - | - | - | - |
| SC 25-6 | 6.5 | 7.2 | 9.0 | 13.0 | 35.0 | 25 |
| SC 25-8 | 8.4 | 7.2 | 9.0 | 13.0 | 35.0 | 25 |
| SC25-10 | - | - | - | -; | - | - |
| SC 35-8 | 8.4 | 8.5 | 10.8 | 13.5 | 38.0 | 35 |
| SC 35-10 | 10.5 | 8.5 | 10.8 | 13.5 | 38.0 | 35 |
| SC35-12 | - | - | - | - | - | - |
| SC 50- 8 | 8.4 | 9.8 | 12.5 | 16.0 | 44.0 | 50 |
| SC 50-10 | 10.5 | 9.8 | 12.5 | 16.0 | 44.0 | 50 |
| SC50-12 | - | - | - | - | - | - |
| SC 70-10 | 10.5 | 11.5 | 14.5 | 18.0 | 51.0 | 70 |
| SC 70-12 | 13.0 | 11.5 | 14.5 | 18.0 | 51.0 | 70 |
表二
| 型號 | 螺栓口直徑d2（mm） | 尺寸（mm） | 導線截面 | |||
| dφ | Dφ | L1 | L | |||
| SC95-8 | - | - | - | - | - | - |
| SC 95-10 | 10.5 | 13.7 | 17.0 | 22.0 | 57.0 | 95 |
| SC 95-12 | 13.0 | 13.7 | 17.0 | 22.0 | 57.0 | 95 |
| SC120-10 | - | - | - | - | - | - |
| SC 120-12 | 13.0 | 15.0 | 19.0 | 24.0 | 64.0 | 120 |
| SC 120-16 | 17.0 | 15.0 | 19.0 | 24.0 | 64.0 | 120 |
| SC 150-12 | 13.0 | 16.7 | 21.0 | 26.0 | 71.0 | 150 |
| SC150-10 | - | - | - | - | - | - |
| SC 150-16 | 17.0 | 18.5 | 23.0 | 30.0 | 79.0 | 185 |
| SC185-14 | - | - | - | - | - | - |
| SC 185-16 | 17.0 | 21.0 | 26.0 | 42.0 | 93.0 | 240 |
| SC240-14 | - | - | - | - | - | - |
| SC 240-16 | 17.0 | 21.0 | 26.0 | 42.0 | 93.0 | 240 |
| SC 240-20 | 21.0 | 24.5 | 30.0 | 42.0 | 103.0 | 300 |
| SC 300-16 | 17.0 | 24.5 | 30.0 | 42.0 | 103.0 | 300 |
| SC 300-20 | 21.0 | 27.0 | 34.0 | 42.0 | 113.0 | 400 |
| SC 400-16 | 17.0 | 27.0 | 34.0 | 42.0 | 113.0 | 400 |
| SC 400-20 | 21.0 | 27.0 | 34.0 | 42.0 | 113.0 | 400 |
| SC 500-16 | 17.0 | 30.0 | 38.0 | 48.0 | 123.0 | 500 |
| SC 500-20 | 21.0 | 30.0 | 38.0 | 48.0 | 123.0 | 500 |
