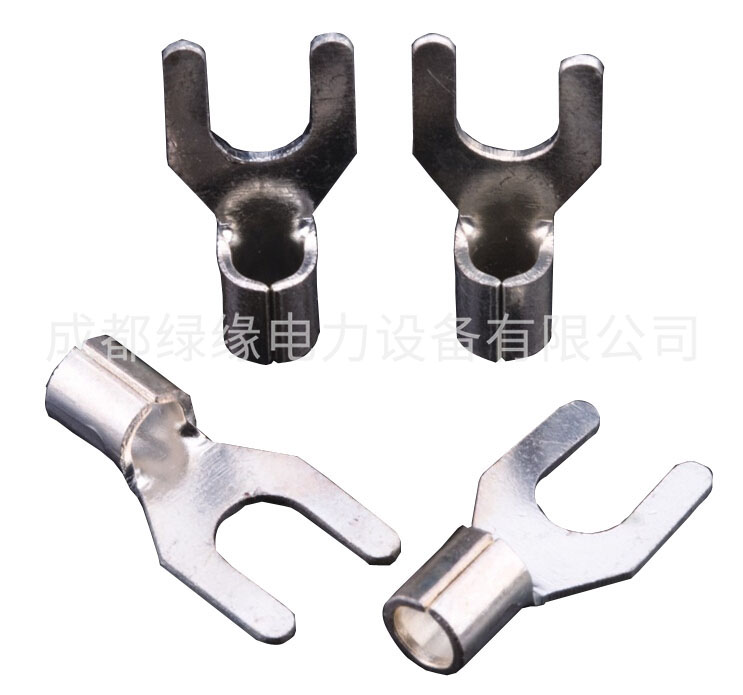

SNB叉形裸焊口紫銅
SNB叉形裸焊口紫銅體詳情請咨詢我們客服人員熱線電話：028-87703039 028-68538156
SNB叉形裸焊口紫銅產品參數(shù):
導線截面2.5～4mm2（美國線規(guī)14～12) ******電流：Imax=37A 材質：紫銅 材料厚度：1.0mm
| 型號 | 美制螺栓號 | 螺栓口直徑 | 尺寸 | |||||||
| B | L | F | E | Dφ | dφ | |||||
| #8 | 3.2 | 5.7 | 18.3 | 7.0 | 6.0 | 5.0 | 3.0 | ||
| #10 | 4.3 | 8.0 | 18.3 | 7.0 | |||||
| #10 | 5.3 | 8.0 | 18.3 | 7.0 | |||||
| 1/4 | 6.4 | 12.0 | 21.5 | 12.1 | |||||
導線截面4～6mm2（美國線規(guī)12～10) ******電流：Imax=48A 材質：紫銅 材料厚度：1.0mm
| 型號 | 美制螺栓號 | 螺栓口直徑 | 尺寸 | |||||||
| B | L | F | E | Dφ | dφ | |||||
| #6 | 3.7 | 8.3 | 19.5 | 7.5 | 6.8 | 5.6 | 3.4 | ||
| #8 | 4.3 | 8.3 | 19.5 | 7.5 | |||||
| #8 | 4.3 | 9.0 | 19.5 | 7.5 | |||||
| #10 | 5.3 | 9.0 | 19.5 | 7.5 | |||||
| 1/4 | 6.4 | 9.0 | 19.5 | 7.5 | |||||
| 1/4 | 6.4 | 12.0 | 25.5 | 12.0 | |||||
| 5/16 | 8.4 | 14.0 | 24.5 | 11.5 | |||||
材質：紫銅 材料厚度：1.2mm 1.4mm 1.7mm
| 型號 | 美制螺栓號 | 螺栓口直徑 | 尺寸 | |||||||
| B | L | F | E | Dφ | dφ | |||||
| #8 | 4.3 | 8.7 | 23.0 | 6.0 | 8.5 | 7.2 | 4.5 | ||
| #10 | 5.3 | 12.0 | 24.5 | 5.7 | 8.5 | 7.2 | 4.5 | ||
| 1/4 | 6.4 | 12.0 | 24.5 | 5.7 | 8.5 | 7.2 | 4.5 | ||
| 5/16 | 8.4 | 14.5 | 28.0 | 8.3 | 8.5 | 7.2 | 4.5 | ||
| 1/4 | 6.4 | 12.0 | 28.0 | 7.5 | 10.5 | 9.0 | 5.8 | ||
| 5/16 | 8.4 | 14.0 | 28.0 | 7.5 | 10.5 | 9.0 | 5.8 | ||
| 5/16 | 8.4 | 14.0 | 34.5 | 9.0 | 12.0 | 11.5 | 7.7 | ||
