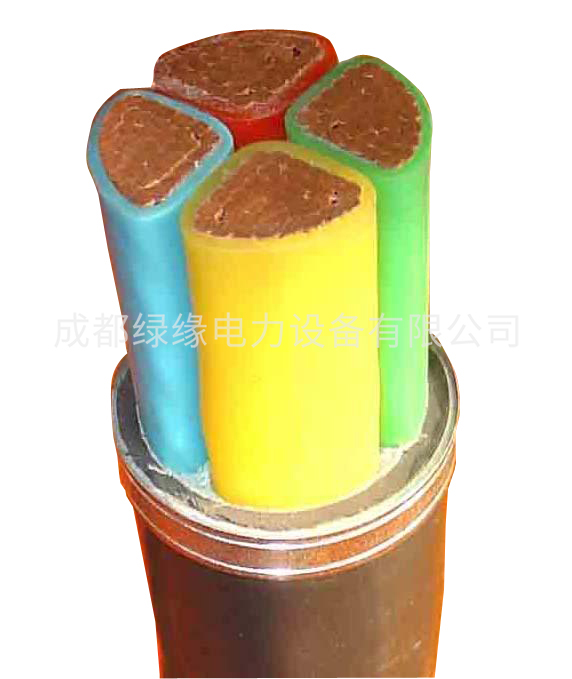

YJV系列YJV就是交聯聚乙烯絕緣聚氯乙稀護套電纜YJV-1 1*
YJV系列YJV就是交聯聚乙烯絕緣聚氯乙稀護套電纜YJV-1 1*
詳情請咨詢客服人員
電話：028-87703039
24小時熱線：028-68538156
YJV系列YJV就是交聯聚乙烯絕緣聚氯乙稀護套電纜YJV-1 1*產品參數：
| 導體標稱截面 | 絕緣厚度 | 護套厚度 | 電纜近似外徑 | 電纜近似重量 | 導體直流電阻 | 試驗電壓 | 電纜載流量 | |
| 在空氣中 | 直埋土壤中 | |||||||
| mm2 | mm | mm | mm | kg/km | Ω/km | KV | A | A |
| 1×1.5 | 0.7 | 1.5 | 5.8 | 53 | ≤12.1 | 3.5 | 25 | 35 |
| 1×2.5 | 0.7 | 1.5 | 6.2 | 68 | ≤7.41 | 3.5 | 30 | 45 |
| 1×4 | 0.7 | 1.5 | 6.7 | 87 | ≤4.61 | 3.5 | 45 | 60 |
| 1×6 | 0.7 | 1.5 | 7.2 | 110 | ≤3.08 | 3.5 | 55 | 70 |
| 1×10 | 0.7 | 1.5 | 8 | 115 | ≤1.83 | 3.5 | 75 | 95 |
| 1×16 | 0.7 | 1.5 | 8.9 | 220 | ≤1.15 | 3.5 | 100 | 125 |
| 1×25 | 0.9 | 1.5 | 10.4 | 345 | ≤0.727 | 3.5 | 140 | 160 |
| 1×35 | 0.9 | 1.5 | 11.5 | 424 | ≤0.524 | 3.5 | 175 | 190 |
| 1×50 | 1 | 1.5 | 13 | 55 | ≤0.387 | 3.5 | 210 | 225 |
| 1×70 | 1.1 | 1.5 | 14 | 770 | ≤0.268 | 3.5 | 270 | 280 |
| 1×95 | 1.1 | 1.5 | 16.4 | 1040 | ≤0.193 | 3.5 | 340 | 335 |
| 1×120 | 1.2 | 1.5 | 17.8 | 1290 | ≤0.153 | 3.5 | 400 | 380 |
| 1×150 | 1.4 | 2 | 20.6 | 1590 | ≤0.124 | 3.5 | 460 | 425 |
| 1×185 | 1.6 | 2 | 22.5 | 1944 | ≤0.0991 | 3.5 | 530 | 480 |
| 1×240 | 1.7 | 2 | 24.9 | 2410 | ≤0.0754 | 3.5 | 625 | 555 |
| 1×300 | 1.8 | 2.5 | 27.3 | 3076 | ≤0.0601 | 3.5 | 720 | 630 |
| 1×400 | 2 | 2.5 | 34.1 | 3642 | ≤0.0470 | 3.5 | 815 | 705 |
